ELHO Arrow 10500 Delta

Description

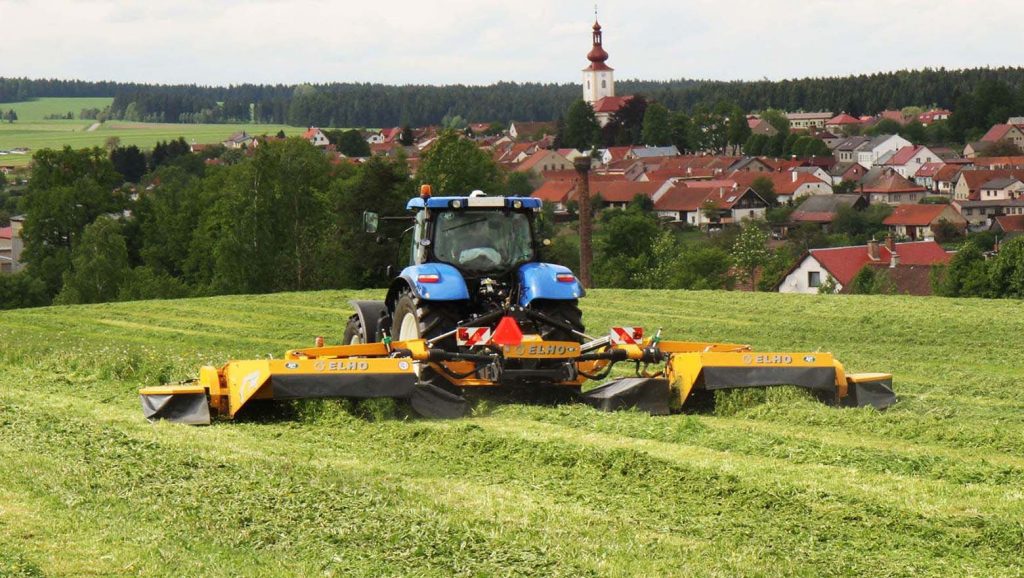

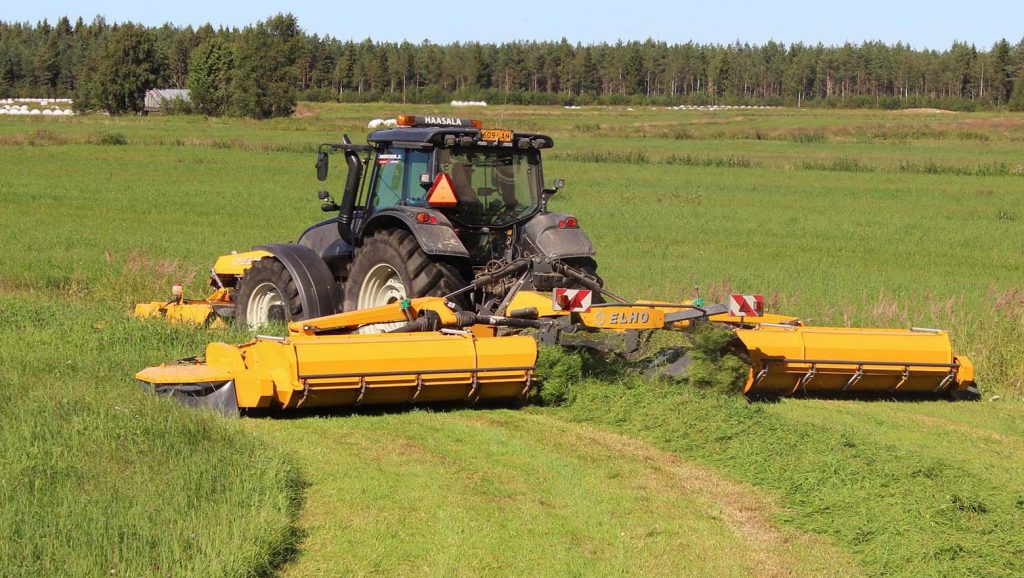

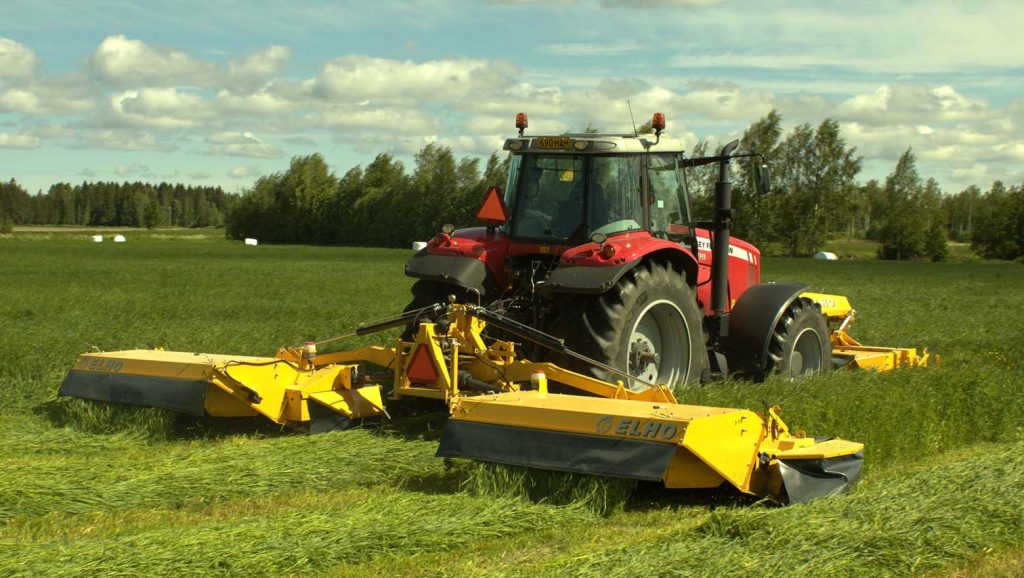

The ELHO Arrow 10500 Delta mower conditioner together with an Arrow 3700 Front mower conditioner is an unbeatable combination, both in work efficiency and driving comfort.

The ELHO Arrow 10500 Delta machine has adjustable working width from 9.4 m to 10.5 m and it needs to be, for example when driving in curves, for the overlapping to work. But the driver dos not need to worry about this! ELHO Opus control along with a GPS takes care of it all! Additionally, the Opus control is easy to set up so that the driver get the settings to his own taste.

For example, when driving in curves the Opus controller handle it so that the left or right mower unit is drawn in depending on which way the curve bends. When you come to the headland press a button and the front mower conditioner is lifted and the GPS ensures that the rear mower units are lifted at the right moment. And vice versa when you go in the grass again.

Extremely easy to use! The Arrow 10500 Delta has AutoBalance (Automatic HydroBalance) suspension of the mower unit the units are carried by the system all the time. Also the AutoBalance settings can be adjusted from the ELHO Opus control. Could it be simpler?

Click for official ELHO Arrow 10500 Delta product page

Videos

Technical Specifications

  • Working width – 940-1050cm
  • Transport width – 320cm
  • HydroBalance suspension – standard
  • Number of mowing discs – 18
  • V.O.A – 1000rpm
  • Conditioning rotor width – 2 x 2164mm
  • Hydraulic pressure – 180min/210max
  • Tractor connection – 3P Kat. 3
  • Total weight – 2900kg
